Material: H-K9L
Dimension Tolerance: ±0.1mm
Angle Tolerance: < 3’
Surface Accuracy: λ/4
Surface Quality: 60/40,40/20
Clear Aperture: >90%
Bevel: < 0.2mm×45°
Coating: Custom Design

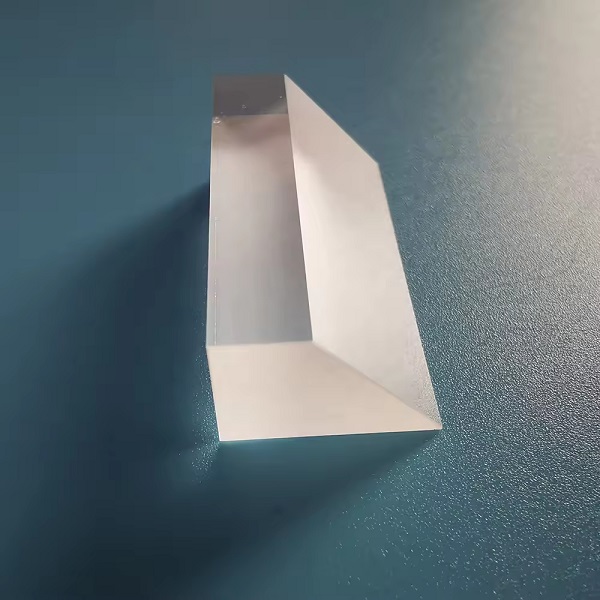

BK7 dove prism is a classic dove prism made of BK7 optical glass, widely used in optical imaging, laser systems, and instrumentation, primarily for image rotation or adjusting the direction of the light path.
What are the applications of BK7 (K9) dove prism?
Image Rotation (180°): corrects image orientation in telescopes, microscopes, or laser scanning systems.
Beam Folding: alters the beam path in compact optical systems to save space.
Laser Systems: used for laser beam steering, but note BK7’s laser damage threshold (~10 J/cm² @ 1064 nm, 10 ns pulse).
Optical Instruments: employed in interferometers, spectrometers, etc., for beam adjustment or aberration compensation.
How to select the material of dove prisms based on the working wavelength?
UV: Fused Sillica(SiO2), CaF2.
VIS: BK7(n=1.52), K9.
IR: Silicon, Germanium, ZnSe.
Dove prisms may invert, reverse, or rotate an image based on which face the light is incident on, so they are also called image rotation or reversion prisms.
