Material: BK7
Diameter: 1.0-500.0mm
Thickness tolerance: +/-0.1mm
Surafce accuracy: 1/4,1/8,1/10, 1/2 Lambda (as required)
Surface quality: 60/40,40/20
Clear Aperture: >90%
Chamfer: <0.25mmx45deg
Transmittance: as per your request
Wedge angle: +/-30‘

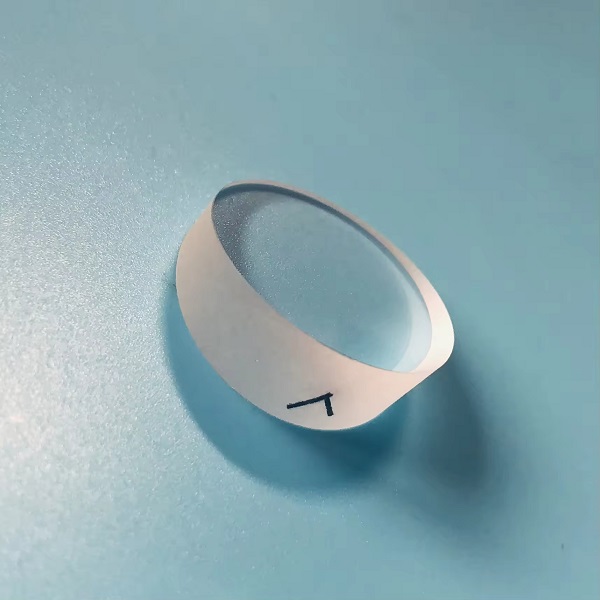

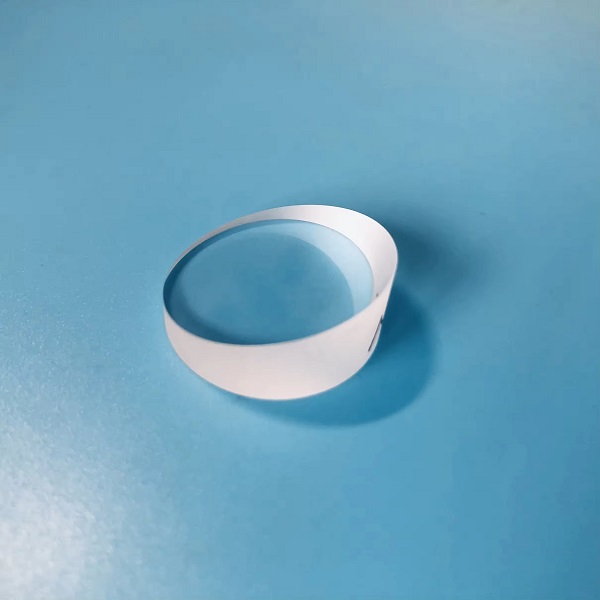

BK7 wedge prism is an optical component made of BK7 optical glass, featuring a wedge-shaped structure (two flat surfaces tilted at a slight angle). It is primarily used for beam deflection, collimation, or optical system alignment in the visible to near-infrared (NIR) wavelength.
When is a BK7 (K9) wedge prism the more suitable choice?
The working band is visible(400-700 nm) or near-infrared (700-2000 nm). The budget is limited and no ultraviolet or ultra-high thermal stability is required. It is used for low-power laser or ordinary optical adjustment (such as laboratory optical path calibration).
Wedge Prisms (Risley prisms) has two plane faces slightly inclined to each other, the wedge apex angle.
