Material: BK7, quartz
Diameter Tolerance: ±0.1mm
Angular Tolerance: ±3'
Surface Accuracy: λ/[email protected]
Surface Quality: 40-20
Clear Aperture: >90%
Bevelling: <0.2×45°
Coating: Custom Design

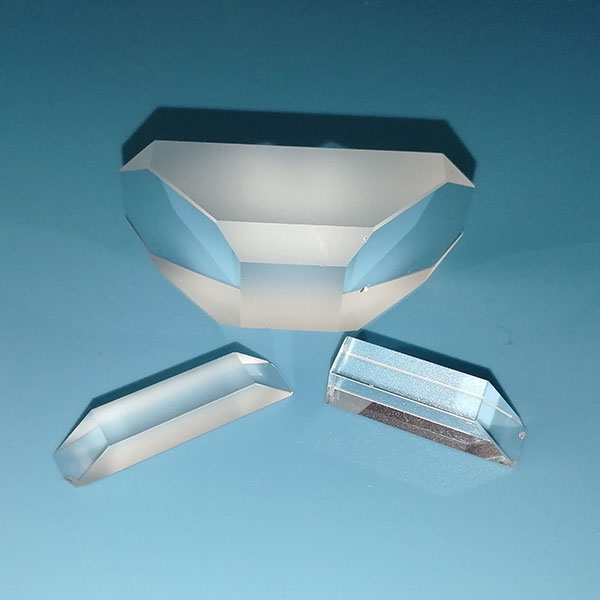

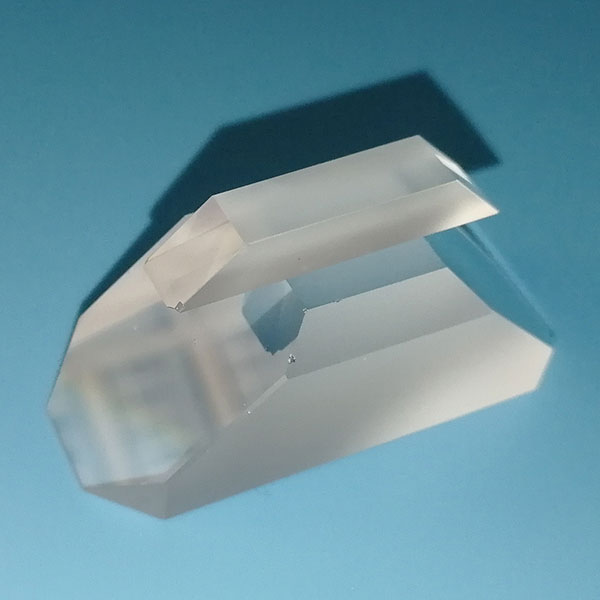

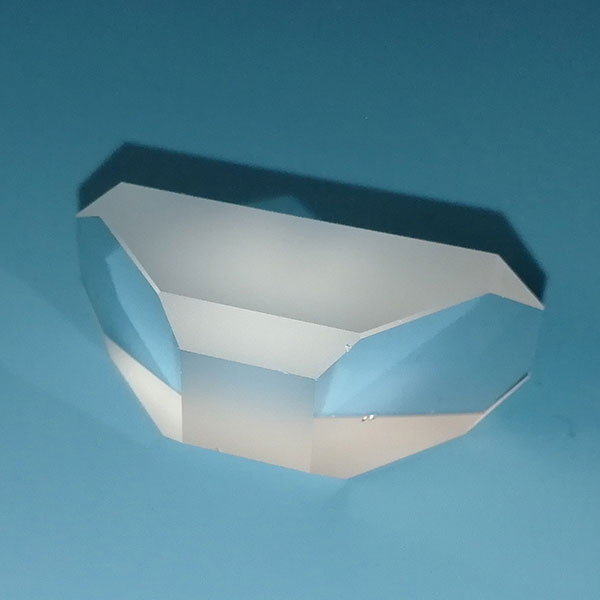

Roof prisms are also called “right angle roof prisms” or “Amici prisms”. In passing through the prism, the image is both deflected top-to-bottom and right-to-left. The hypotenuse of the prism utilizes total internal reflection (TIR) to reflect the image through the prism. Yutai’s roof prisms are made of H-K9L (BK7) or fused silica, other optical glass is available. Yutai Optics’ prisms are widely used in Binoculars, Spotting Scopes, Prism Diagonals in an Optical System, Optical Tooling.
Roof prism is a type of optical prism commonly used in binoculars, microscopes, and other optical instruments to adjust the direction of the light path and maintain image consistency from side to side by reflecting and refracting light rays.
