Material: Fused Silica,H-K9L (BK7), Float Glass
Dimension Range: Φ3mm-Φ300mm
Tolerance: +0.0/-0.1mm
Front Surface Flatness: λ/4
Surface Quality: 60-40
Parallelism: Within 3 arcmin
Clear Aperture: >90%
Back Surface: Fine Ground
Coating: Hot/Cold mirror coatings

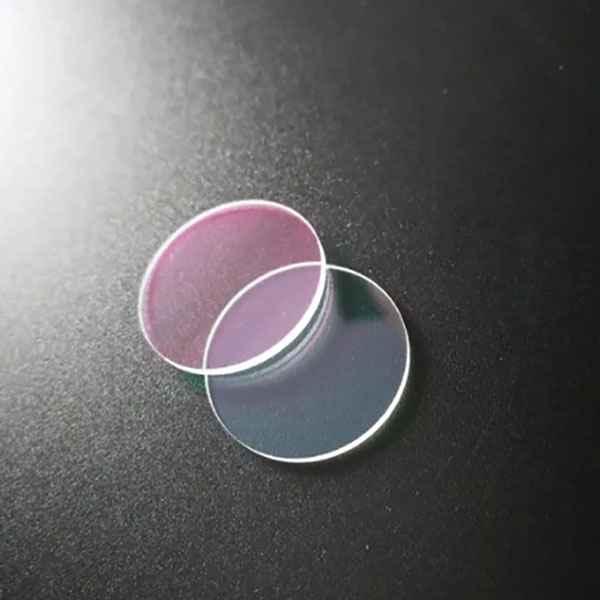

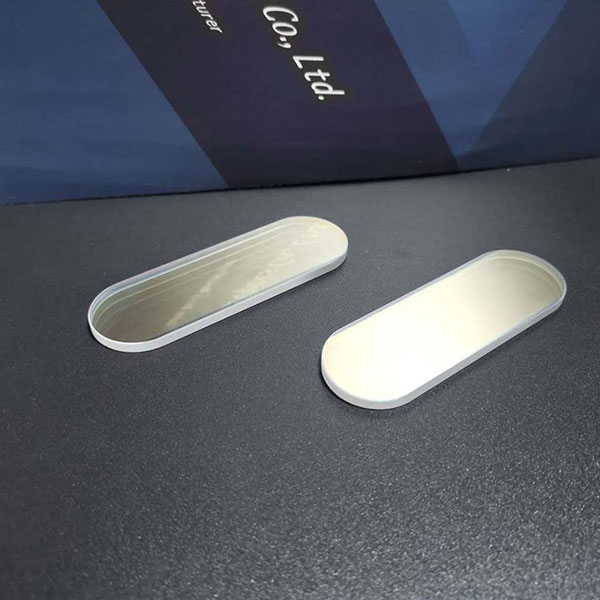

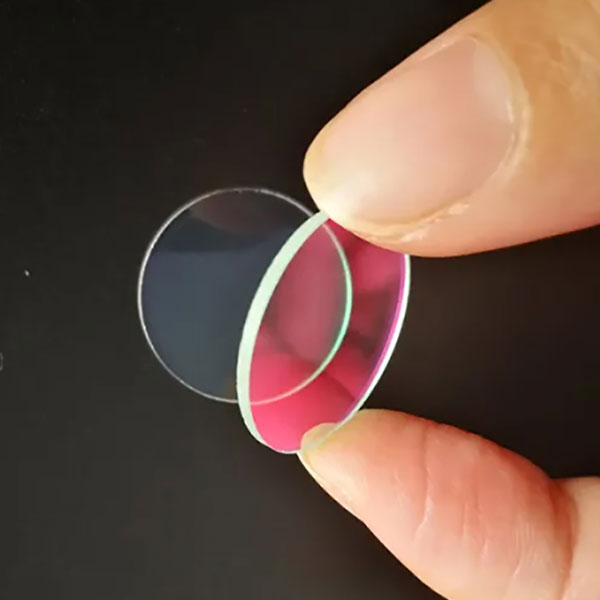

Hot mirrors are heat-reflecting mirrors that are designed to work as a shortpass edge filter by transmitting visible wavelengths @AOI 0°, while reflecting NIR, heat-generating wavelengths.(Reflect NIR heat & transmit VIS light @ 0°. Remove unwanted heat from an optical system.)
Application: The products are mainly used in precision optical system, such as a rear projection,TV system, digital projection apparatus, digital camera,and CCD imaging detection system, to suppress infrared heat radiation interference that improve the optical quality.
Cold mirrors are heat-transmitting mirrors that are designed to work as longpass filters by reflecting visible wavelengths @AOI 45°, while transmitting NIR wavelengths. (Reflect VIS light and transmit NIR heat @45°.Remove unwanted heat from an optical system.)
Application: Cold Mirror can be used in such a system which need to split the heat of spectrum and wave band. Visible light is reflected, and the hot part is transmitted when using the cold mirror.
