Material: H-K9L, Optical glass, UVFS
Dimension Tolerance: ±0.1mm
Angle Tolerance: < 3’
Surface Accuracy: λ/4
Surface Quality: 40/20
Clear Aperture: >90%
Bevel: < 0.2mm×45°
Coating: Custom Design

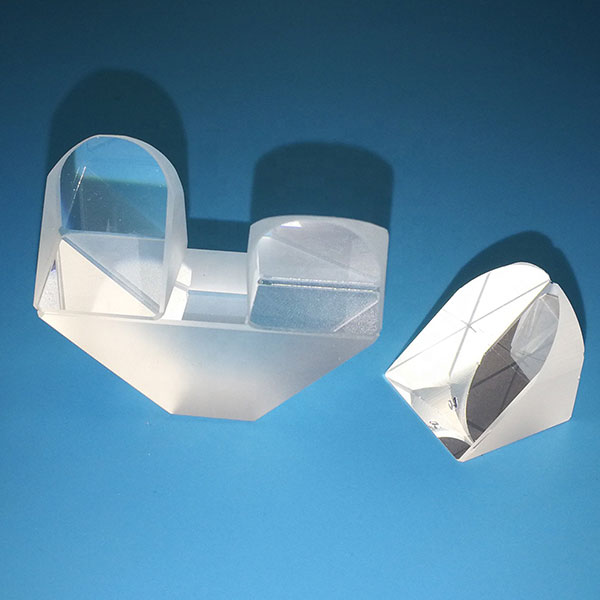

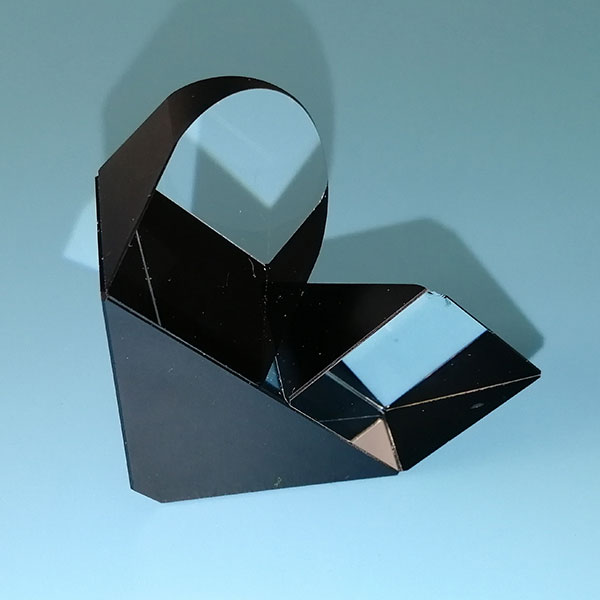

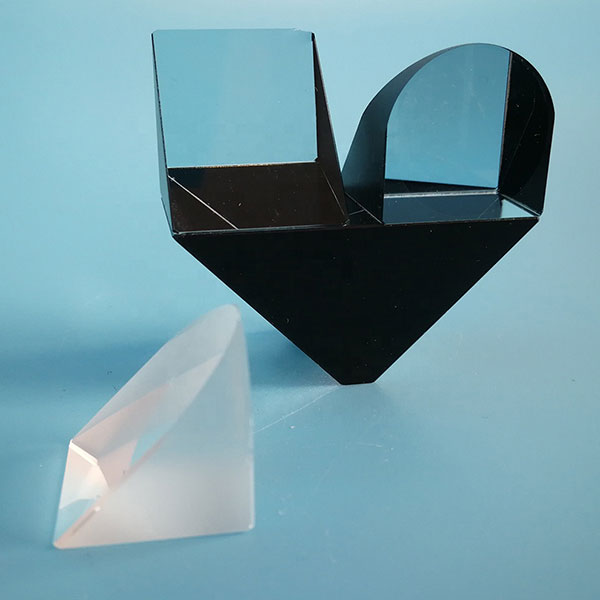

Porro prisms are used for a 90° light path bend by using the hypotenuse face of the prism rather than the leg faces.They are similar to right angle prisms. This configuration produces a right-handed image since two reflections occur. The incident ray’s direction is reversed when using a porro prism since the object enters and the image exits the same face.
