Material: H-K9L (BK7) or UVFS
Dimension Tolerance (mm): ±0.1
Surface Flatness: λ/4
Surface Quality: 40-20
Angle Tolerance (arcsec): ±5
Beam Deviation (arcsec): ±30
Coating: Uncoated or coating
Type: Rhomboid Prism
Ray Deviation (°): 0
Image Orientation: Beam Deviation

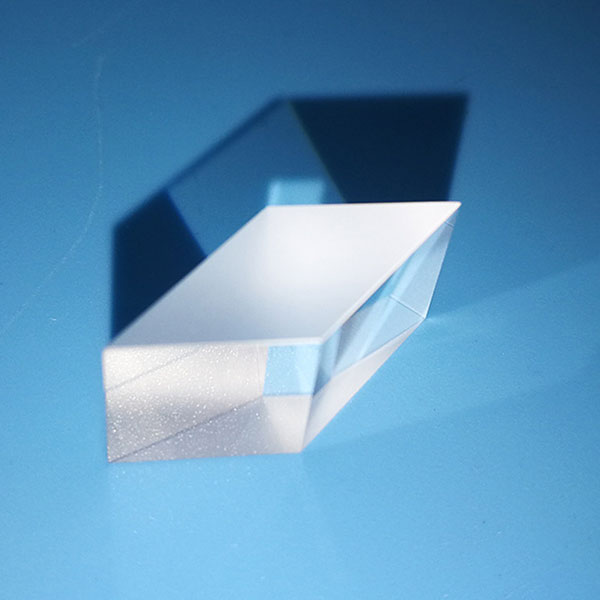

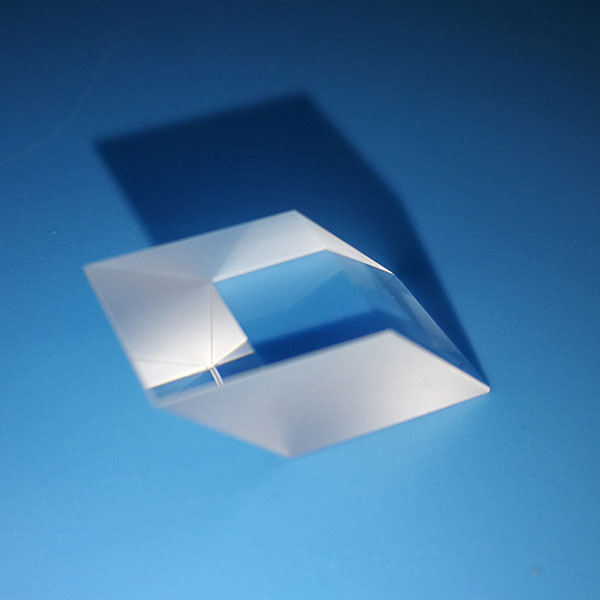

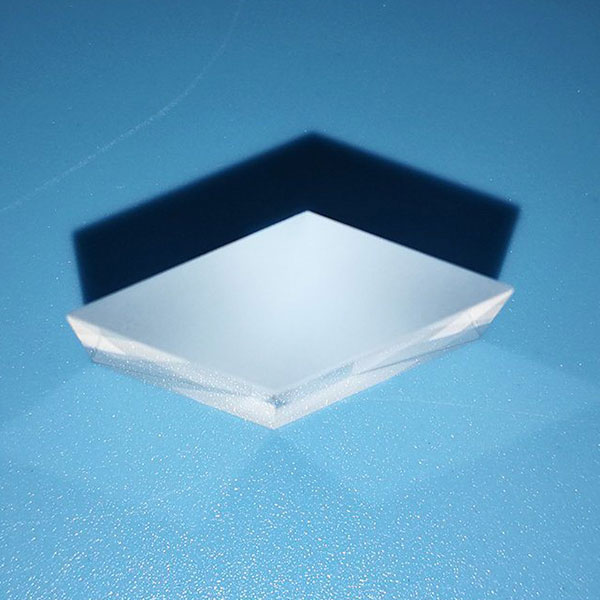

Rhomboid (Diamond/Rhombus) prisms are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prisms will displace the optical axis without inverting the image.
The lateral displacement is equal to the length of the prism . Our Rhomboid Prisms feature high tolerance angles that keep the output beam parallel to the input beam to within 30 arcseconds. They are ideal for demanding displacement applications.
