Material: H-K9L, Fused Silica, other optical glass
Diameter: 2-100mm
Length: 3-500mm
Centring Error: <10 Arc minutes
Surface Quality: 40-20
Coating: Specified by customers
Designed for use in a variety of laser and imaging systems, rod lenses are available in a range of micro sizes for integration into a host of OEM applications. Custom sizes, variations in polishing/ground surfaces and additional coatings are available upon request.

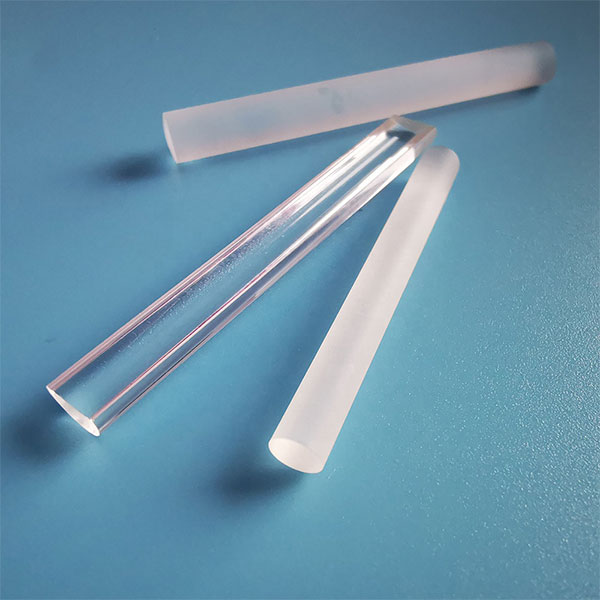

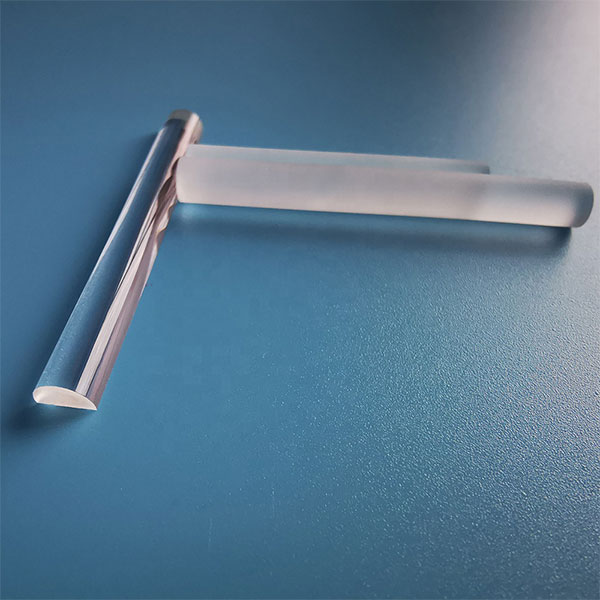

Yutai’s Rod Lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line. N-BK7 and UV Fused Silica substrates are available for a variety of UV, Visible and NIR applications.

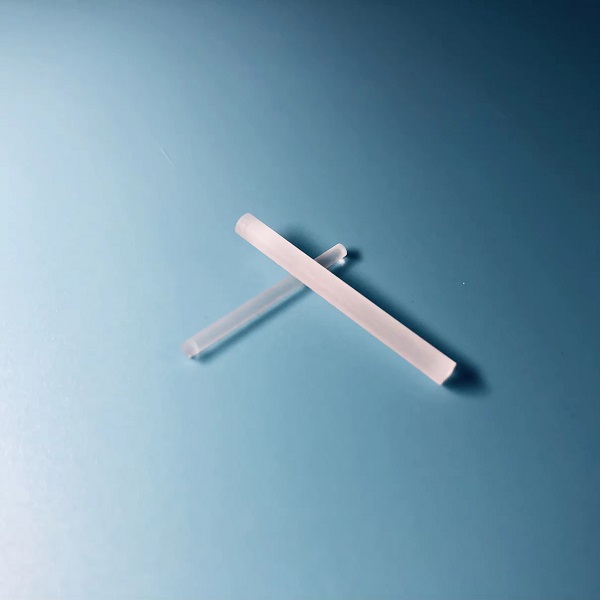

Fused silica rod lenses are processed from high purity fused silica material and have excellent optical properties. The shape is cylindrical and the length is usually larger than the diameter. High transmittance, low coefficient of thermal expansion, high temperature and chemical resistance.
